GD Series

160 - 2400 t IMM

cost-effective Allrounder

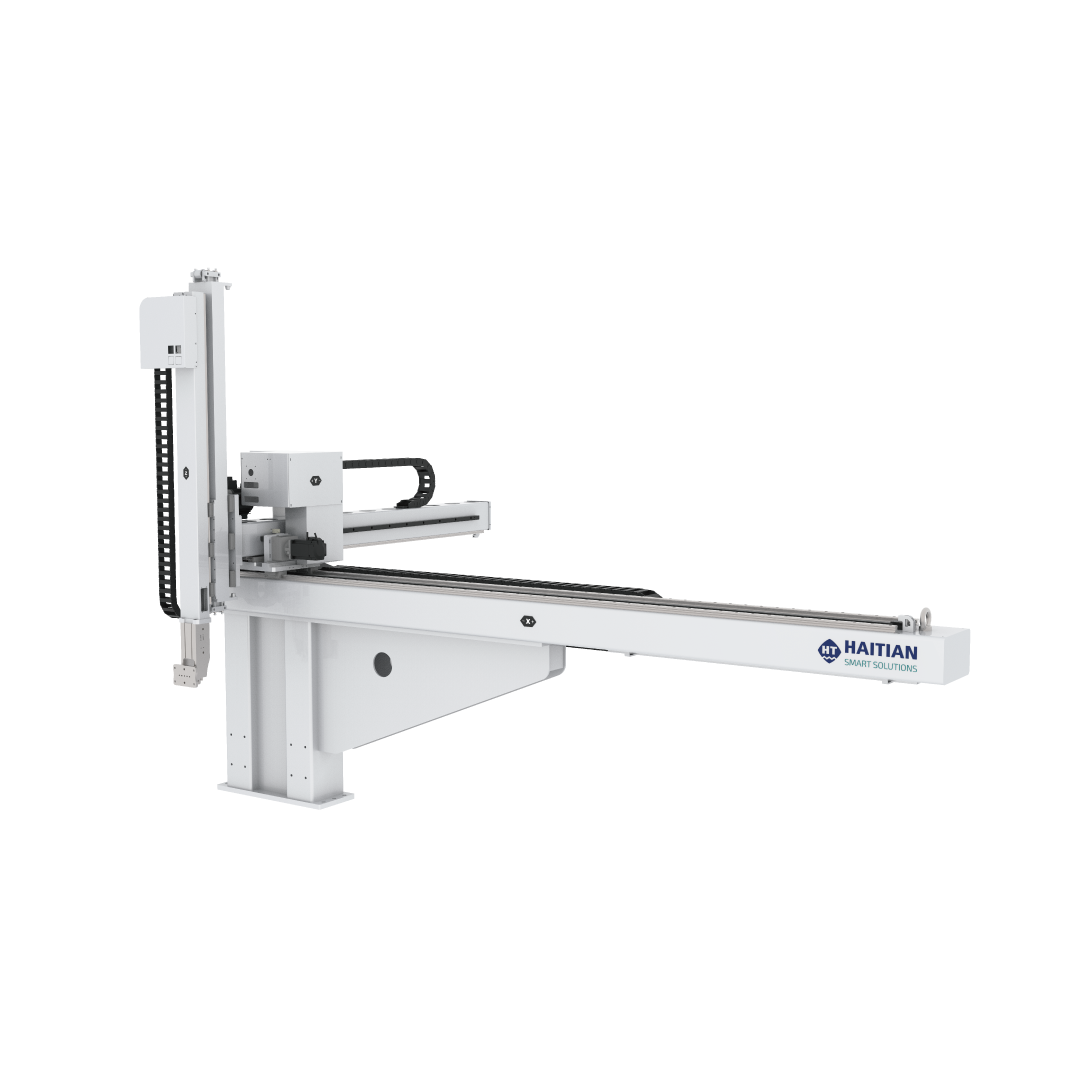

GD Series

The GD series delivers all essential functions with exceptional cost-effectiveness, making it ideal for diverse applications, particularly for thin-walled product handling.
Repeat Positioning Accuracy

± 0.1 mm

Minimum pickup time

2.6 – 6.3 s

Maximum load (including fixture)

20 – 40 kg

High-rigidity bull-head structure with square steel pipe arms
Suitable for secondary mold operations and tall-part removal
Supports insert loading, unloading, alignment, and stacking
Haitian control system with 7-inch color touch screen
Servo motor or cylinder drive with precision linear guide and steel belt transmission
​

Highlights

Ether-link

The in-house developed control system achieves seamless integration with injection molding machine controllers and provides user-friendly operation.

Program-think

Create a machine-side automation environment for efficient resource allocation.

Model-pick

Flexible and complex modes allow operators to freely switch between templates or custom programs, simplifying the workflow.
